Product

Street transport crucible

Description

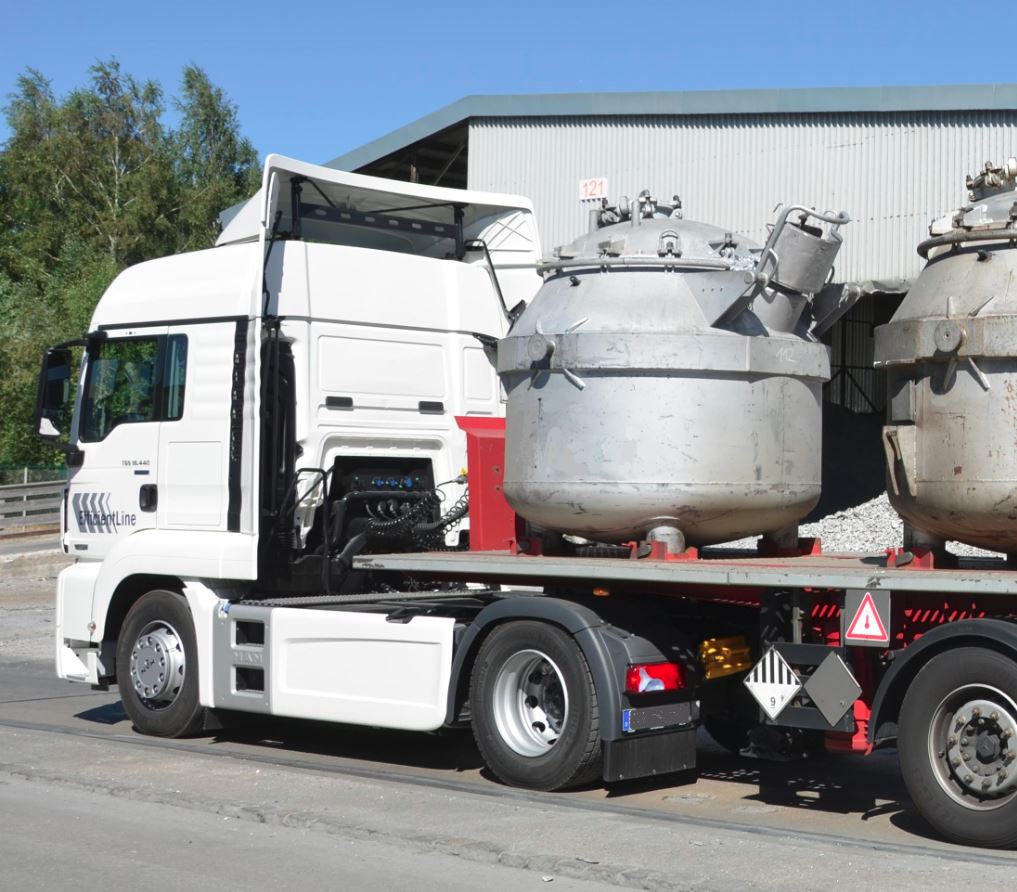

The transport crucible for liquidaluminium is used to transport aluminium melts on public roads from the smelter to the foundry. Itconsists of a solid steel casing with reinforcing strips and a temperature resisting refractory liningwith optimal heat insulating properties.The feet of the crucible are equippedwith bores to fix the crucible on transport vehicles and tilting units. Thecrucible can be emptied through a corresponding pouring spout. The removablecover provides a filling hole which can be closed during transport, this alsorefers to the pouring spout.

Technical Data

·        Outsidediameter of the crucible:       1,800 mm

·        Weightempty:                                4 t (standard crucible) 15 t (large crucible)

·        Capacity:                                       4-6t or 15 t

·        Averagetemperature loss:                8-12degrees Celsius / hour

·        Externaltemperature:                      max. 130 °C

·        Lining:                                           130mm refractory

·        Standardsand approvals:                  TÜV Rheinland, Hazardous materials directive ADR,German Federal Institute for MaterialsTesting,Pressure equipment directive HP0

Characteristics

·         Simplifiedhandling of liquid aluminium

·         Lowtemperature loss due to effective lining

·         Individualsizes up to 15 t useful capacity available

·         Suitablefor transport by crane

·         Highestsafety standard due to close cooperation with TÜV and the German Institute for Materials Testing

·         TÜVapproval is valid all over Europe

·         Individual inspection and approval
