Forkfix
Description

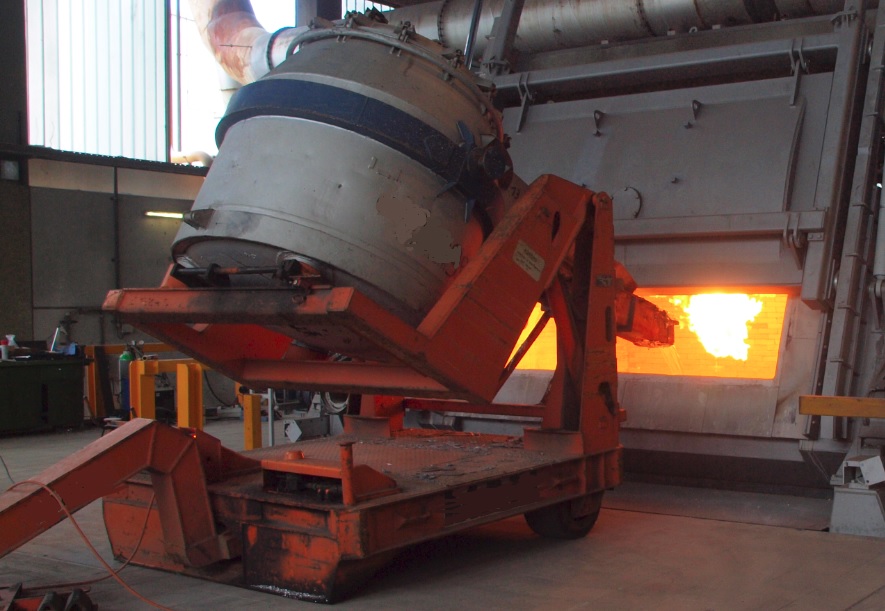

The BARTZ-Forkfix is designed for the use of thestandard 5-6t liquid metal crucibles. The Forkfix is a mobile tilting unitwhich can be connected to a standard fork lifter. With a special coupleequipment the forklifter can move and route the crucible to the targetposition. With a hand-control unit the crucible can be tilted so that via ancasting launder the liquid metal can be transferred into the furnace or a laundersystem.
Technical Data
· Crucibledimension 6t Ø 1.900mm
· Grossweight with aluminum crucible 12t
· Weightof the Forkfix 4,3t
· Dimensionwithout crucible 2,65 x2,75 x 2,40m
· Hightwith crucible in tilting position 4.218mm
· Tilting angle max. 110°
· Power connection (extern) 380V
· Diameter hydraulic cylinders 120/70mm – stroke 1000mm
Characteristics
· Coupleable to a standard forklifter
· Connect and disconnect without leaving theforklifter
· Highly mobile grade in cause of one-axis design
· Strong steel structure – designed for casthouse
· High safety grade according EN-Standard
· Tilting speed adjustable – smooth tilting function
