Description

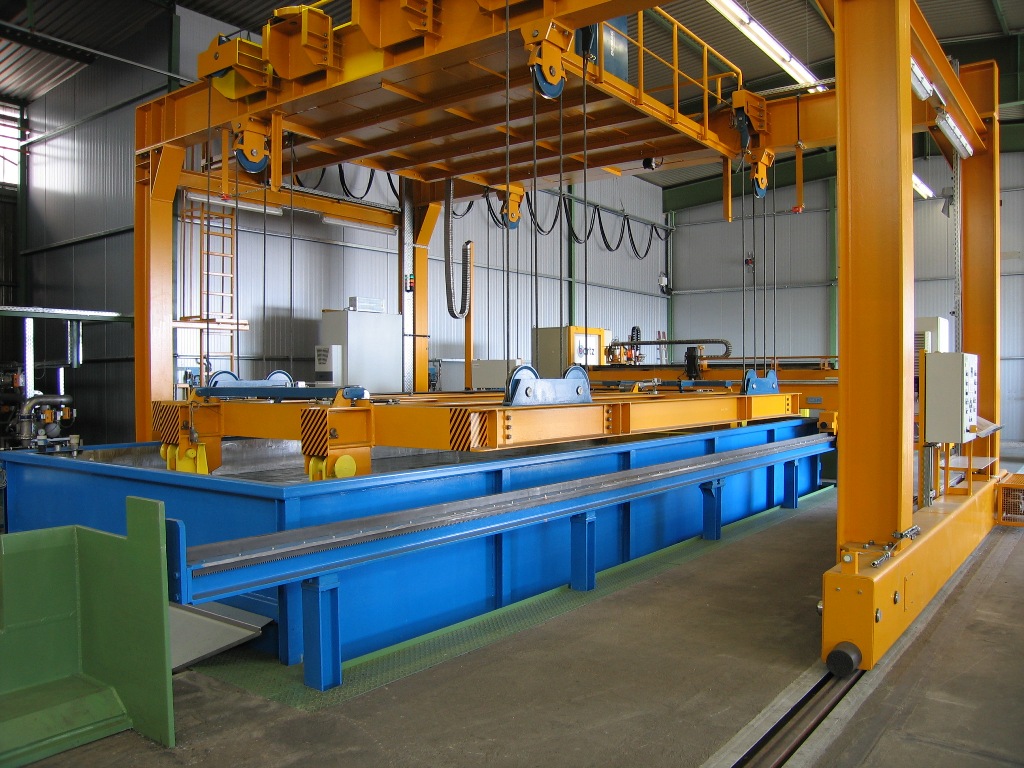

TheUltrasonic Test Unit for Ingots, designed by bartz, is used for thenon-destructive testing of aluminum ingots. After the Casting the ingots can be tested on impurities or structuredefects. Defects of the size of ~1,2mm can be detected and localized. Theadvantage of the ingot testing is the „pre-check“ of critical material (alloys)before the production process starts.



Technical Data



·        Max.ingot size                               8m x 2,5m

·        Max.thickness for testing                500mm

·        Testingspeed                                Up to 150mm/s

·        Testaccuracy:                               Class A

·        US-Headcalibration unit

·        Contactfree testing under water



Characteristics



·        Stainlesssteel water tank

·        Gantrycrane for loading and unloading of the ingot

·        Specialloading frame for the ingot

·        Watertreatment unit

·        Waterlevelling unit for the tank
